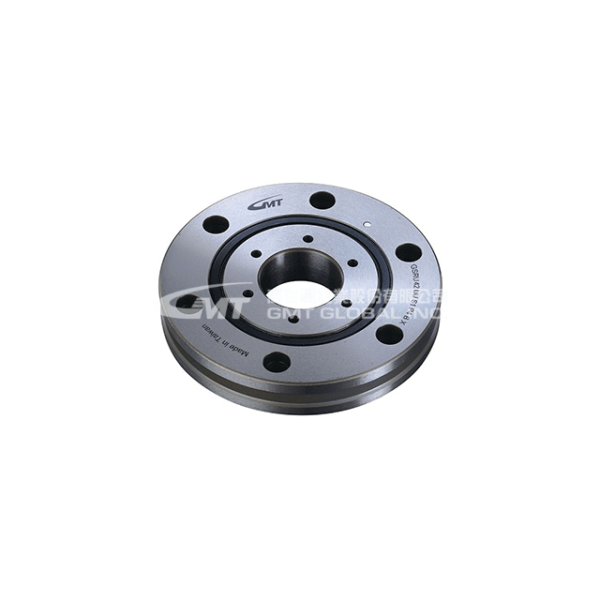

Cross roller bearings are made up of inner rings, outer rings, even-number rollers and retainers, rollers are arranged on the V-shaped groove rolling surface perpendicular to retainers, so the resulting structure is able to withstand radial load, axial load and moment load.
Crossed roller bearings have a large load-bearing area because of line contact between the rollers and the rail surface, therefore, the product is the most appropriate bearings to be used on the rotory structure industrial robots, rotating workbenches, and medical equipment etc.
Axial | Model No. | Main Dimensions | Flarge Height | Basic Load | Weight | ||||||
I,D,
Ød |
O,D,
ØD |
Thickness
T |
LH
d1 |
Chamfer(r/min)
rmin |
Øda | ØDh | C
KN |
C0
KN |
Kg | ||
20 | GSRU42 | 20 | 70 | 12 | 3 | 0.5 | 36 | 46 | 7.3 | 8.33 | 0.28 |
35 | GSRU66 | 35 | 95 | 15 | 3 | 0.5 | 58 | 75 | 17.53 | 22.31 | 0.6 |
55 | GSRU85 | 55 | 120 | 15 | 3 | 0.5 | 78 | 94 | 20.31 | 29.55 | 1.1 |
80 | GSRU124(G) | 80 | 165 | 22 | 3 | 1 | 115 | 133 | 33 | 50.85 | 2.61 |
GSRU124X | |||||||||||
90 | GSRU148(G) | 90 | 210 | 25 | 3 | 1.5 | 134 | 161 | 49 | 76.83 | 4.95 |
GSRU148X | |||||||||||
115 | GSRU178(G) | 115 | 240 | 28 | 3 | 1.5 | 162 | 194 | 80.32 | 134.9 | 6.78 |
GSRU178X | |||||||||||
160 | GSRU228(G) | 160 | 295 | 35 | 6.1 | 2 | 207 | 247 | 103.5 | 172.8 | 11.42 |
GSRU228X |
