AZV40 – Standard
Liên hệ
★ Guide-Linear ball, Gothic arc-groove formed by dual arc-grooves individually on upper and lower rails of body. Ball moving in single groove is structured by 2 points-contact, and total 4contact points in dual arc-groove to form strong rail constructure.
Transmission Parts：
★Ball screw, It transmits through the ball involving in the locknut and screw to reach the accuracy and longer operation lifetime.
★Belt Driven, It mainly transmits the thrust and involves between two long-distance axes. It is suitable for high-speed and low-torque transmission.
★ Material-Steel
★This product pic. shows as AZV6008-F8NN-ND.
Transmission Parts：
★Ball screw, It transmits through the ball involving in the locknut and screw to reach the accuracy and longer operation lifetime.
★Belt Driven, It mainly transmits the thrust and involves between two long-distance axes. It is suitable for high-speed and low-torque transmission.
★ Material-Steel
★This product pic. shows as AZV6008-F8NN-ND.

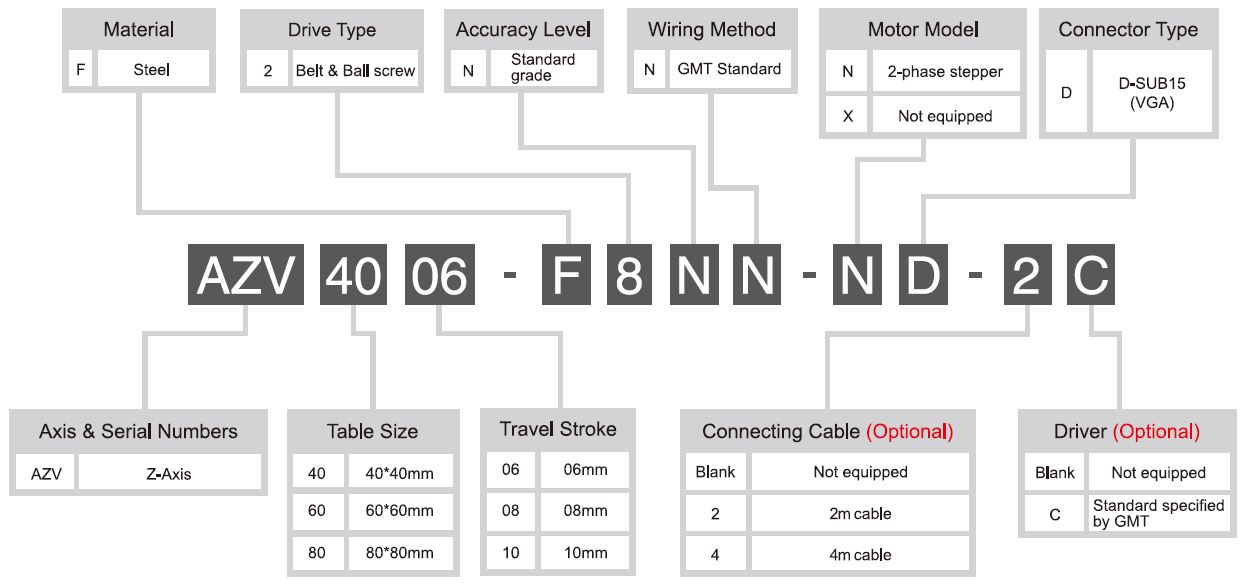

SKU: AZV4006-F8NN-ND
|
Model No. |
AZV4006-F8NN-ND |
|||
|
Mechanical Spec. |
Table Size (mm) |
40 X 40 | ||
|
Travel Stroke (mm) |
6 | |||
|
Drive Type |
Belt & Ball screw Ø6 lead 1mm | |||
|
Rail |
Linear Ball Guiding | |||
|
Stage Material / Surface Treatment |
Steel / Nickel plating | |||
|
Main Unit Weight (Kg) |
0.6 | |||
|
Coupling |
N / A | |||
|
Accuracy Level |
N：Standard grade | |||
|
Wiring Method |
N：GMT Standard | |||
|
Precision Spec. |
Resolution (Pulse) (µm) |
5 (Full) | 2.5 (Half) | |
|
Max. Speed (Full Step) (mm / sec) |
12 | |||
|
Positioning Presion (µm) |
30 | |||
|
Repeatability Precision (µm) |
± 5 | |||
|
Load Capacity (Kgf) |
3 | |||
|
Missed Step (µm) |
5 | |||
|
Parallelism (µm) |
50 | |||
|
Dynamic Straightness (µm) |
4 | |||
|
Dynamic Parallelism (µm) |
20 | |||
|
Electrical Spec. |
Motor |
Type / Shaft Numbers |
2-phase stepper / ☐ 28 double shafts | |
|
Brand / Model |
GMT / 2MS-N28D32A | |||
|
Driver Brand / Model |
GMT / GTR22G-D (Additional options) | |||
|
Connector |
Stage Side Connector |
15-Pin male end connetor D-SUB / 12-Pin male end connetor HRS | ||
|
Controller Side Connector |
15-Pin female end connetor D-SUB / 12-Pin female end connetor HRS (Additional options) | |||
|
Sensor |
Origin Sensor |
Photoelectric sensor GMT-sensor | ||
|
Limit Sensor |
||||
|
Power Voltage |
24V ± 10% | |||
|
Control Output |
NPN open collector output under 24V 8mA | |||
|
Output Control |
Testing (sensing)：output transistor OFF (closed) | |||
| System Configuration Diagram |
| ♦ For selection of the drivers preferred, please refer to the reference table or the catalogue of Motor・Driver.
♦ All of the drivers chosed are the specification of GMT preferred. For different needs, please choose the suitable drivers according to real functional needs.
|
| Axis Definition |
| GMT has defined different axis as the following figuration according to the movement direction:
Horizontal movement direction is X and Y axis. Vertical movement direction is Z axis. Movement around X, Y, Z axis is defined to α axis, β axis, and θ axis. Green arrows present the specified axis movement direction.
|
Motor・driver Reference Table |
 |
|
|
