GS05-N
Liên hệ
★ 4 contact points formed by circulated ball bearings in 45 degrees contact to the guide rail surface to produce an even-loading performance of each side of the guide.
★ Circulation system is a plastic part designed to reduce friction noise during block running.
★ End and bottom seals design to prevent dust and foreign objects entering from block running, to extend product usage life.
|
Model No. |
GS05-N-N |
GS05-N-L |
|
|
Specifications |
Standard Length (mm) |
25 / 40 / 55 / 70 / 85 / 100 | |
|
Pitch (mm) |
15 | ||
|
Pitch Min. Length (P4, P5) (mm) |
3 | ||
|
Pitch Max. Length (P4, P5) (mm) |
10 | ||
|
Max. Rail Length (L3) (mm) |
500 | ||
|
Rail Material |
Stainless Steel | ||
|
Block Type |
N：Standard Block | L：Long Block | |
|

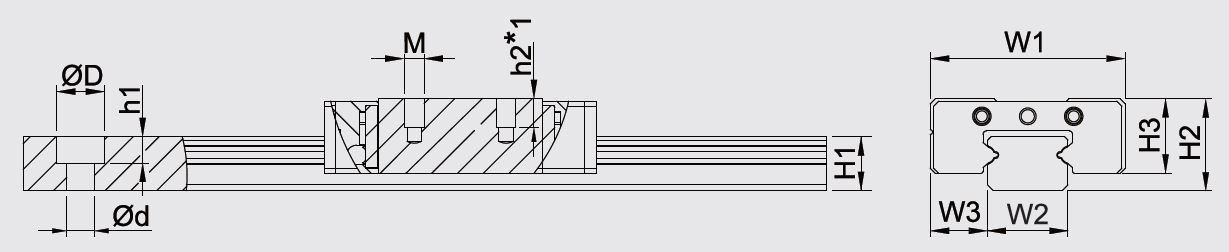

Assembled Dimensions |
H2 (mm) |
6 | 6 |
|
W3 (mm) |
3.5 | 3.5 | |
|

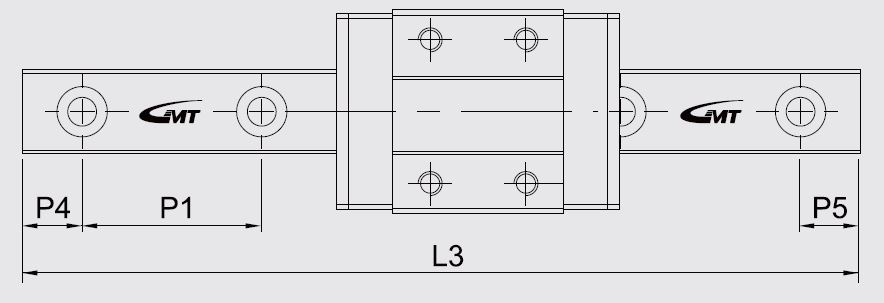

Rail Dimensions |
W2 (mm) |
5 | 5 |
|
H1 (mm) |
3.5 | 3.5 | |
|
P1 (mm) |
15 | 15 | |
|
ØD x Ød x h1 (mm) |
3.5 x 2.4 x 1 | 3.5 x 2.4 x 1 | |
|

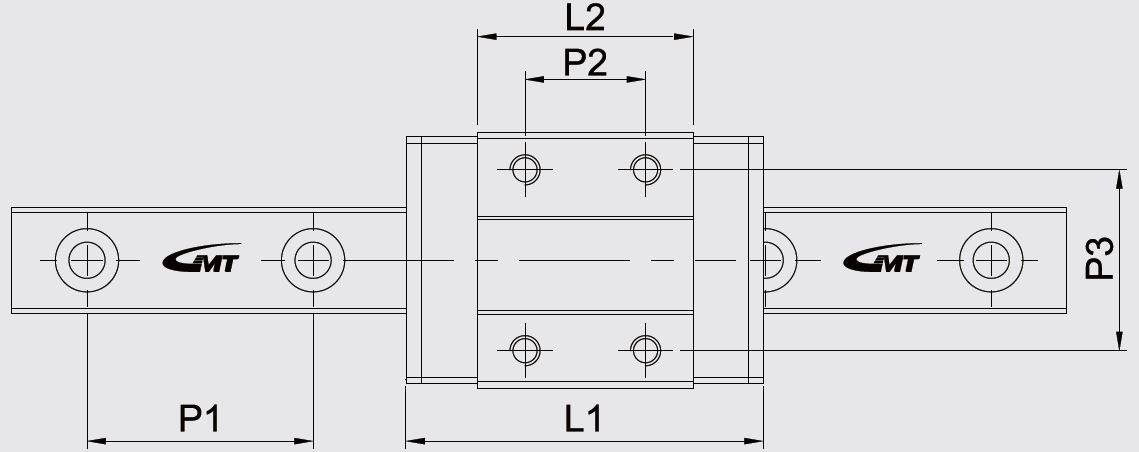

Block Dimensions |
W1 (mm) |
12 | 12 |
|
L1 (mm) |
20.1 | 23.6 | |
|
L2 (mm) |
10 | 13.5 | |
|
H3 (mm) |
4.5 | 4.5 | |
|
P2 (mm) |
– | 7 | |
|
P3 (mm) |
8 | – | |
|
M x h2 |
M2 x 1.5 | M2.6 x 2.0 | |
|
Rated Loading |
C (N) |
318 | 447 |
|
C0 (N) |
523 | 855 | |
|

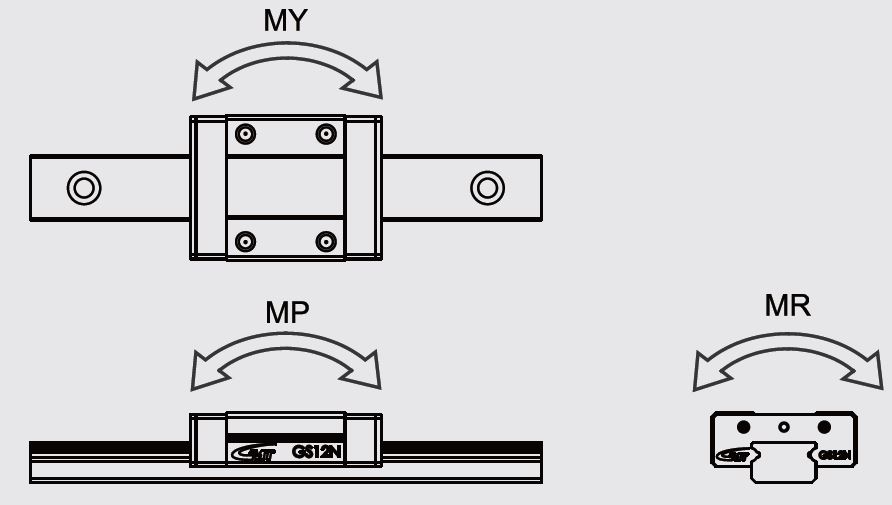

Static Torque |
MR (Nm) |
1.6 | 2.3 |
|
MP (Nm) |
1.0 | 2.0 | |
|
MY (Nm) |
1.0 | 2.0 | |
|
Weight |
Block (g) |
3 | 4 |
|
Rail (g/cm) |
114 | 114 | |
| Product Structure |
  |
| Product Character |
| ♦ 4 contact points formed by circulated ball bearings in 45 degrees contact to the guide rail surface to produce an even-loading performance of each side of the guide.
♦ Circulation system is a plastic part designed to reduce friction noise during block running. ♦ End and bottom seals design to prevent dust and foreign objects entering from block running, to extend product usage life. ♦ Steel balls are provided with steel wire retainers to prevent the ball falling. ♦ With stable precision control, the same type of rails could be interchanged, and keep the same smoothness, accuracy, preload, and it is also convenient for assembly and maintenance. ♦ The steel balls used in this series are all stainless steel material.
【Standard width rail】 – Fit to low profile equipment. – Stainless steel material. – High rigidity and accuracy. – Including retainer.
【Wide width rail】 – Suitable for single axis usage. – High capacity. – High rigidity and accuracy. – Stainless steel material. – Including retainer.
【Carbon steel rail】 – Economical. – Good anti-rust ability on the surface. – Same size as stainless steel series. |
