Trang chủ / Linear Motion Components / Ball Screw Support Units / Fixed Side

GSWE12-S Standard

Liên hệ

GSWE12-S Standard

Hỗ trợ đặt hàng

Sản phẩm khác
  • Ballscrew-Threaded Ball Nut-1010 Liên hệ
  • Ballscrew-Threaded Ball Nut-1005 Liên hệ
  • Ballscrew-Threaded Ball Nut-0808 Liên hệ
  • Mô tả
  • Đánh giá (0)

Model No.

GSWE12-SL

GSWE12-SM

GSWE12-SH

Specification

Material

S50C

Surface Finish

B:Black Dyed

N:Ni-Plating

Pre-loaded

L:Light M:Medium H:Heavy

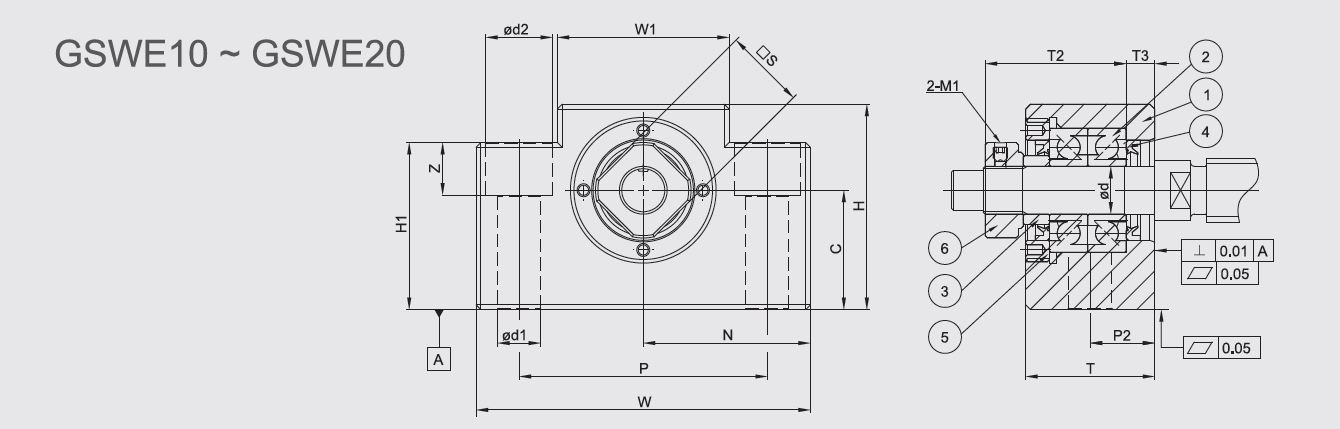

Dimensions

Ød (mm)

12

T (mm)

27

T1 (mm)

8.5

T2 (mm)

29.5

T3 (mm)

6

W (mm)

70

W1 (mm)

36

H (mm)

43

H1 (mm)

35

N ±0.02 (mm)

35

C (+0, -0.02) (mm)

25

P (mm)

52

P2 (mm)

–

P3 (mm)

–

Ød1 (mm)

9

Ød2 (mm)

14

Z (mm)

11

口S (mm)

19

Recommended

Processing

Dimensions

of

Shaft

Ball Screw Shaft

ØD (mm)

14 / 15 / 16

Shaft End Dia.

Ød (mm)

12 (-0.005, -0.012)

Processing sizes of shaft

ØA (mm)

10

B (mm)

36

C (mm)

15

Nominal Thread

M (mm)

M12 x P 1.0

L (mm)

11

Space Ring Length

T4 (mm)

5.5



Support Unit Introduction



♦   Preload selection and applications

– Light (L)

* Machine Requirements:Equipments with small vibration and small thrust, load in one fixed direction. High accuracy is not required. Reduction of frictional force.

* Application Examples:Laser welder, small CNCmill machine, cutter, welder, automatic tool changer, packing machine, material supply equipment.

– Medium (M)

* Machine Requirements:Equipments with load on a post. Equipments with a torque acting on it. Equipments working in one direction. Equipments with low load. Equipments with high accuracy.

* Application Examples:Automated feeder, linear feeder, automatedpainting machine, precision slide table, Z-axis control on machines, PC board punch machine. Industrial robot, EDM machine, NC lathe.

– Heavy (H)

* Machine Requirements:High rigidity, high vibration, high thrust equipments. High load, high torque equipments.

* Application Examples:Machining center spindle, NC lathe, Z-axis spindle of the machinery, milling machine, grinding wheel feeding of grinding machine.



♦  Pre-Loaded Description

– Purpose:1. Increase the rotational accuracy of axle

2. Increase the rigidity of axle

3. Reduce unwanted clearance

4. Reduce vibration and noise while bearing stops.

– What is bearing preload?:The preload describes the process wherein a permenant thrust road is applied to the bearing, so that the bearing is secure in the groove and has no axial clearence. Apply normal force (N). Measure value of L of a pair of bearings. L=L1+L2. Press these pair of bearings on the covers to apply preload and bring these bearings together



♦   Selection Notes

– [ Model ]:Pick up the model according to assembly method.

Assembly:

1. Plane mounting:GAK、GBK、GEK、GAF、GBF、GEF、GSW、GSWE、GUN、GTN。

2. Suspension and spindle mount:GFK、GFF、GRW、GRWE、GUR、GTR。

– [ Size ]:Decide the size according to the ballscrew shaft O.D., and the center height.

– [ Grade ]:Standard and economic types for options.

– [ Pre-loaded ]:Decide pre-loaded of the bearing per needs.

– [ Surface Finish ]:

Black dyed – Regular environment use, low humidity.

Nickel plating – Clean room use.

– [ Bearing category ]:Available Japanese series and Taiwanese series.



Support Unit Assembly models & Steps
