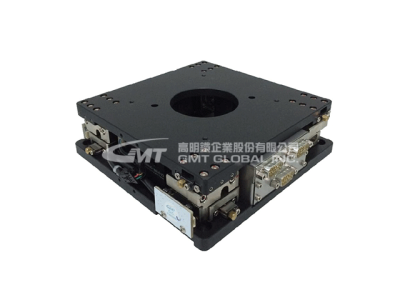

AX40-A – Standard
Liên hệ
★ Guide-Crossed-roller Guide, In structure, V-groove and crossed roller acquire movement in high accuracy and capacity by linear transmission to act a high precision movement and load capacity performance.
★ Transmission Parts-Ball screw, It transmits through the ball involving in the locknut and screw to reach the accuracy and longer operation lifetime.
★ Material-Aluminum Alloy
|
Model No. |
AX40-A2NR-ND |
AX40-A2NL-ND |
||
|
Mechanical Spec. |
Table Size (mm) |
40 X 40 | ||
|
Travel Stroke (mm) |
15 | |||
|
Drive Type |
Ball screw Ø6, lead 1mm | |||
|
Rail |
Anti-creep crossed-roller guiding | |||
|
Stage Material / Surface Treatment |
Aluminum alloy / Black anodized | |||
|
Main Unit Weight (Kg) |
0.37 | |||
|
Coupling |
FAMMS12-3*5 | |||
|
Accuracy Level |
N：Standard grade | |||
|
Wiring Method |
R：Right wiring | L：Left wiring | ||
|
Precision Spec. |
Resolution (Pulse) (µm) |
5 (Full) / 2.5 (Half) | ||
|
Max. Speed (Full Step) (mm / sec) |
10 | |||
|
Positioning Presion (µm) |
15 | |||
|
Repeatability Precision (µm) |
± 1 | |||
|
Load Capacity (Kgf) |
6 | |||
|
Missed Step (µm) |
2 | |||
|
Parallelism (µm) |
30 | |||
|
Dynamic Straightness (µm) |
3 | |||
|
Dynamic Parallelism (µm) |
6.6 | |||
|
Electrical Spec. |
Motor |
Type / Shaft Numbers |
2-phase stepper / ☐ 28 double shafts | |
|
Brand / Model |
GMT / 2MS-N28D32A | |||
|
Driver Brand / Model |
GMT / GTR22G-D (Additional options) | |||
|
Connector |
Stage Side Connector |
15-Pin male end connetor D-SUB / 12-Pin male end connetor HRS | ||
|
Controller Side Connector |
15-Pin female end connetor D-SUB / 12-Pin female end connetor HRS (Additional options) | |||
|
Sensor |
Origin Sensor |
Photoelectric sensor GMT-sensor | ||
|
Limit Sensor |
||||
|
Power Voltage |
24V ± 10% | |||
|
Control Output |
NPN open collector output under 24V 8mA | |||
|
Output Control |
Testing (sensing)：output transistor OFF (closed) | |||
