GTR514H-D
Liên hệ
★ 5-phase micro-step stepper motor driver.
★ Selection for 1~250 micro divisions.
★ Switch for two kinds of division externally.
★ Small volume, Simple controlling.
★ Reverse power connection protection.
★ Signal input range: DC5~24V. No need to connect current limiting resistance.
|
Model No. |
GTR514H-D |
|
|
Input power (V) |
DC24V ~ 3A or more | |
|
Driver current |
0.36 ~ 1.4A / phase | |
|
Magnetizing current type |
200 micro-step | |
|

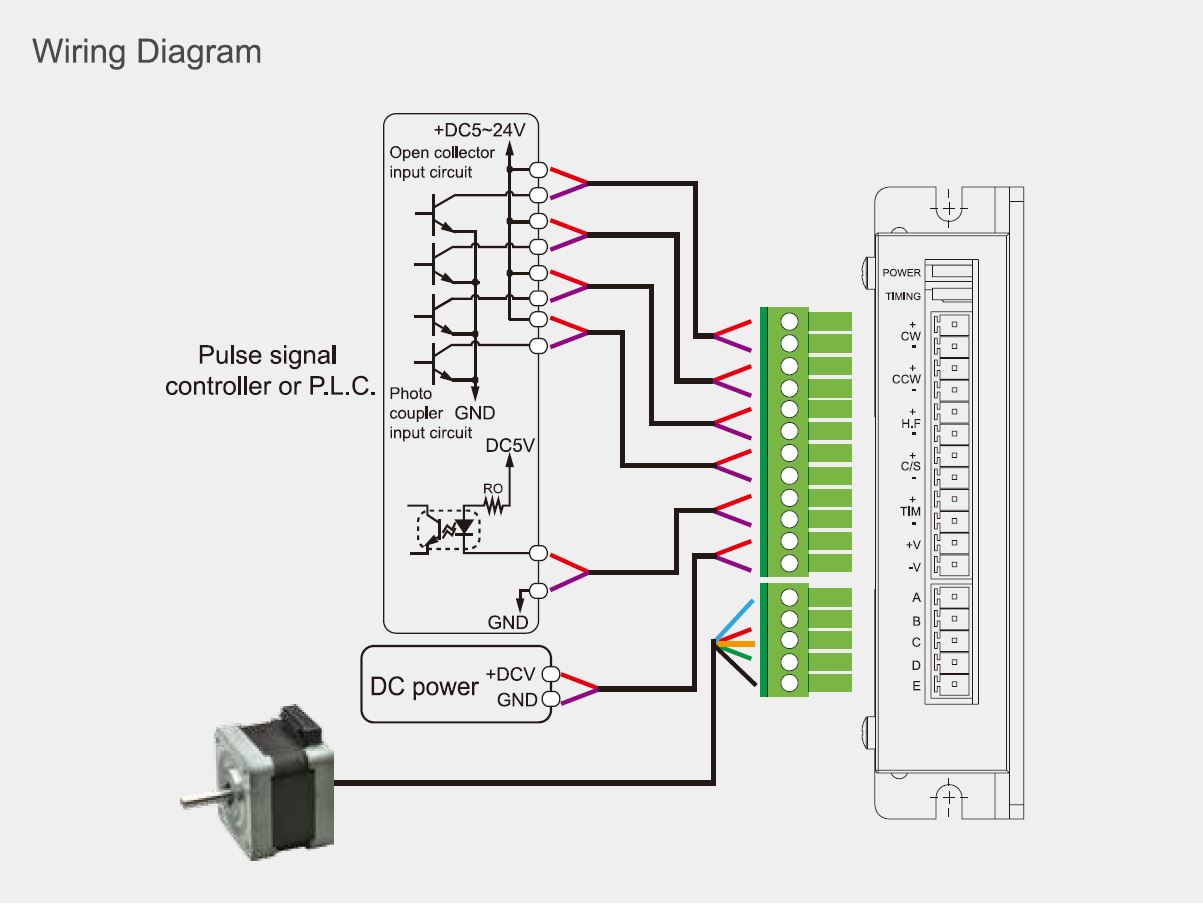

Signal output / input type |
Photo Coupler input interface
Open Collector output interface |
|
|
Input signal |
CW pulse input |
2 pulse：Clockwise input
1 pulse：Pulse input |
|
CCW pulse input |
2 pulse：Counter clockwise input
1 pulse：Running direction input |
|
|
H.OFF pulse input |
Magnetizing current relieved (Holding off) | |
|
C / S pulse input |
Two options of different divisions | |
|
Output signal |
TIMING output |
Phase original of magnetizing current output
TIMING output while motoe moves per 7.2° |
|

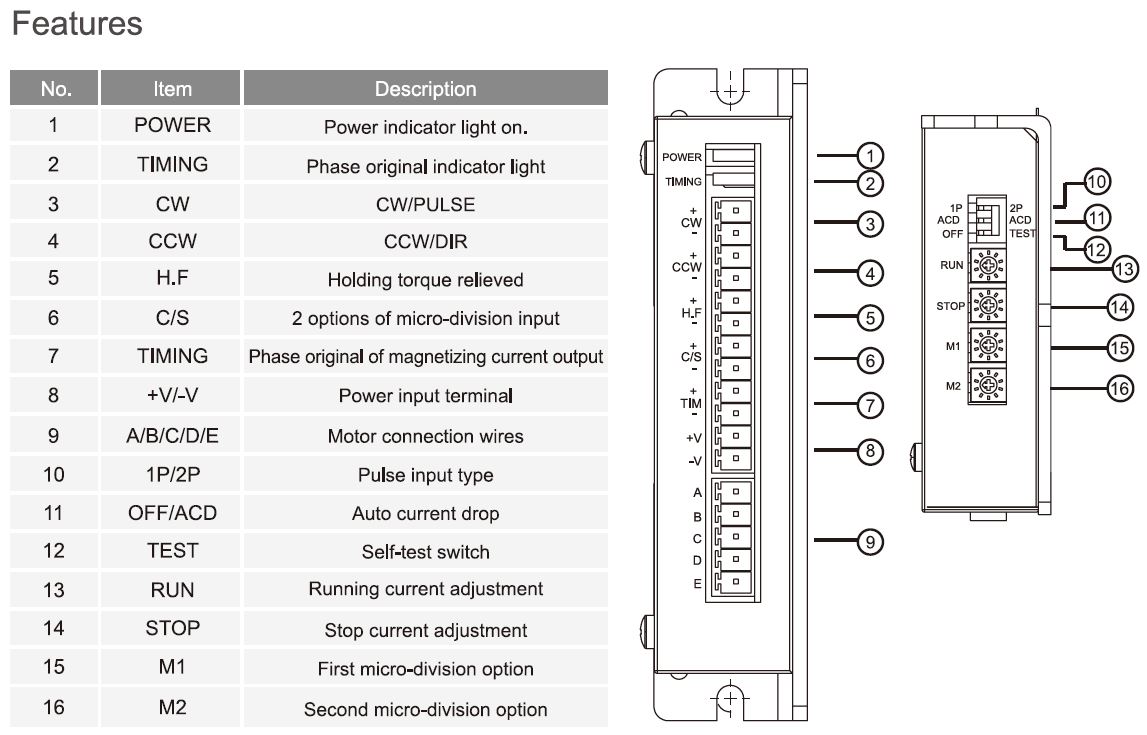

Functions |
– Auto current drop (ACD)
– Stepper angle switch (H / F) – Self-test function (TEST) – Pulse input type switch (1P / 2P) |
|
|
Protection functions |
Reverse polarity protection circuits, auto-cutoff action while reversed voltage input, and restart after power in. | |
|
LED light |
Power，TIMING | |
|

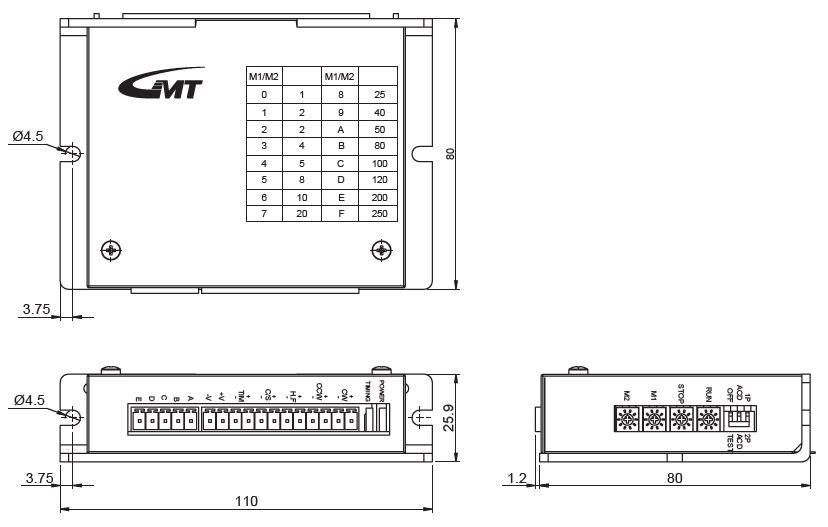

Profile dimensions |
104 (L) x 80 (W) x 26 (H) mm | |
|
Weight |
209 g | |
|
Isolation resistance |
Resistance value measured between power input terminal and case is more than 100MΩ while testing with DC500V resistor pin tester. | |
|
Isolation voltage resistance |
Keep measuring voltage between the power input terminal and case for 1 minute through AC0.5KV/60Hz high voltage has to be no failure. | |
|
Usage temperature |
Temperature |
0°C ~ 40°C |
|
Humidity |
Under 85% | |
|
Condition |
Away from mist, dust, corrosiveness and inflammable air | |
