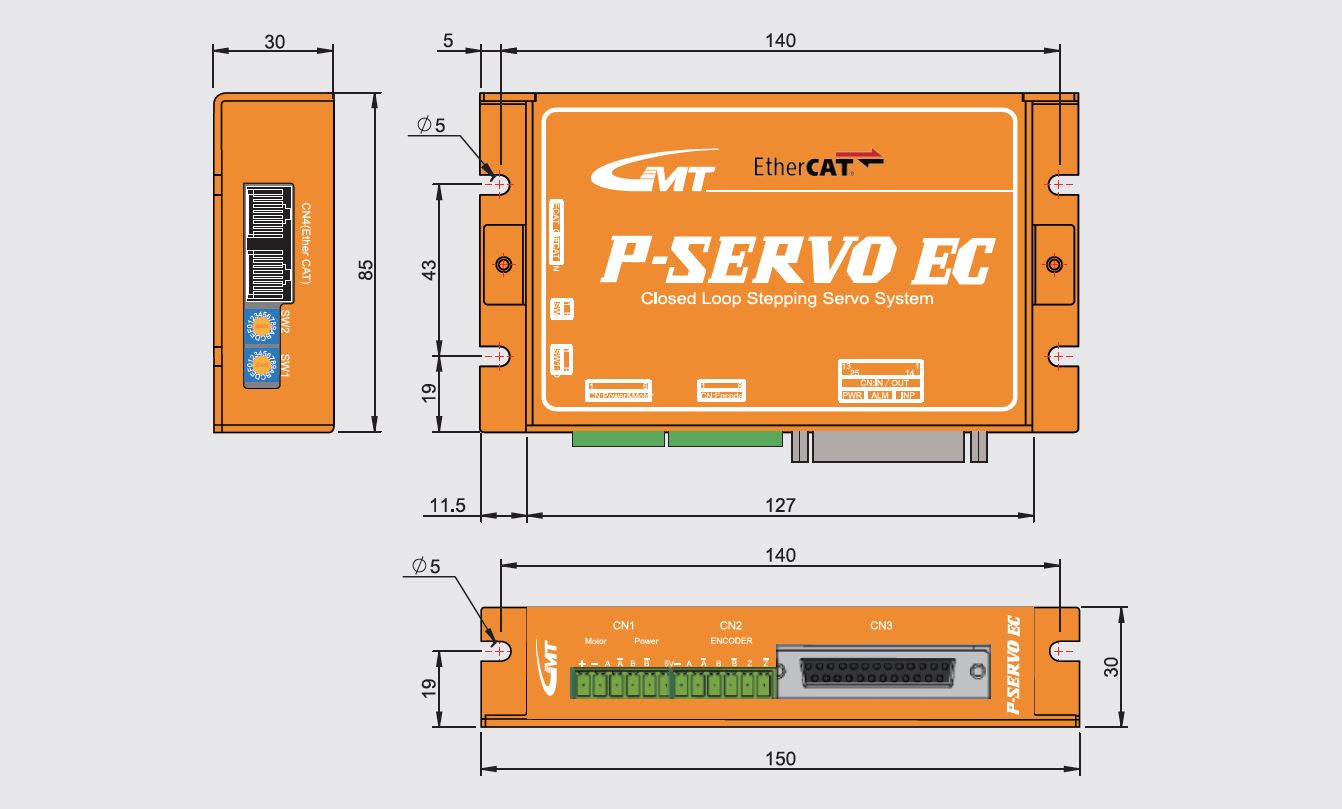

P-SERVO EC
Liên hệ
★ Closed-loop system.
★ High positioning resolution.
★ Energy conservation.
★ High-speed and synchronous communication interface.
★ Standard movement protocol.
|
Model No. |
P-SERVO EC |
|
|
Specification |
Input Power |
24 VDC ± 10% |
|
Current Consumption |
Max. 500mA (Except Motor Current) | |
|
System |
Close-loop Control System | |
|
Drive Ampacity |
Max. 3.1 Arms | |
|
Operation Condition |
Temperature |
Use：0 ~ 50°C；Storage：-20 ~ 70°C |
|
Temperature (No Condensation) |
Use：35 ~ 85%；Storage：10 ~ 90% | |
|
Vibration Resist |
0.5g | |
|
Function |
Rotation Speed |
0 ~ 3,000 rpm |
|
Resolution (ppr) |
200 ~ 51,200 ppr | |
|
Protection Functions |
Over Current、Over Speed、Max. Count Error、Over Temperature、Motor Connection Error、Encoder Connection Error、Position Error、Position Value Overflow Protection、Memory Error、Internal Communication Error | |
|
LED Display |
Power Status、Position Status、Excited Status、Alarm Status、Execution Status | |
|
Input / Output Signal |
Input Signal |
3 Dedicated Inputs (Limit +、Limit – 、Origin)
8 User Inputs |
|
Output Single |
1Dedicated Outputs (Brake)
8 User Outputs |
|
